Our trolleys are engineered to accommodate a wide variety of tools, doors, curtains, backdrops, fixtures, moveable dividers, welding curtains, pneumatic tools, die handling, material transfer, lubrication systems, moveable wire / air hose handling, and anything else you need to slide along 1-5/8" Strut Channel.
Compatible with Unistrut, Superstrut, P1000, P1001, P5000, P5001, P5500, P5501, and all 1-5/8” or taller metal frame strut channel.
Tested up to 250LBS, We are unsure of Max rating at this time

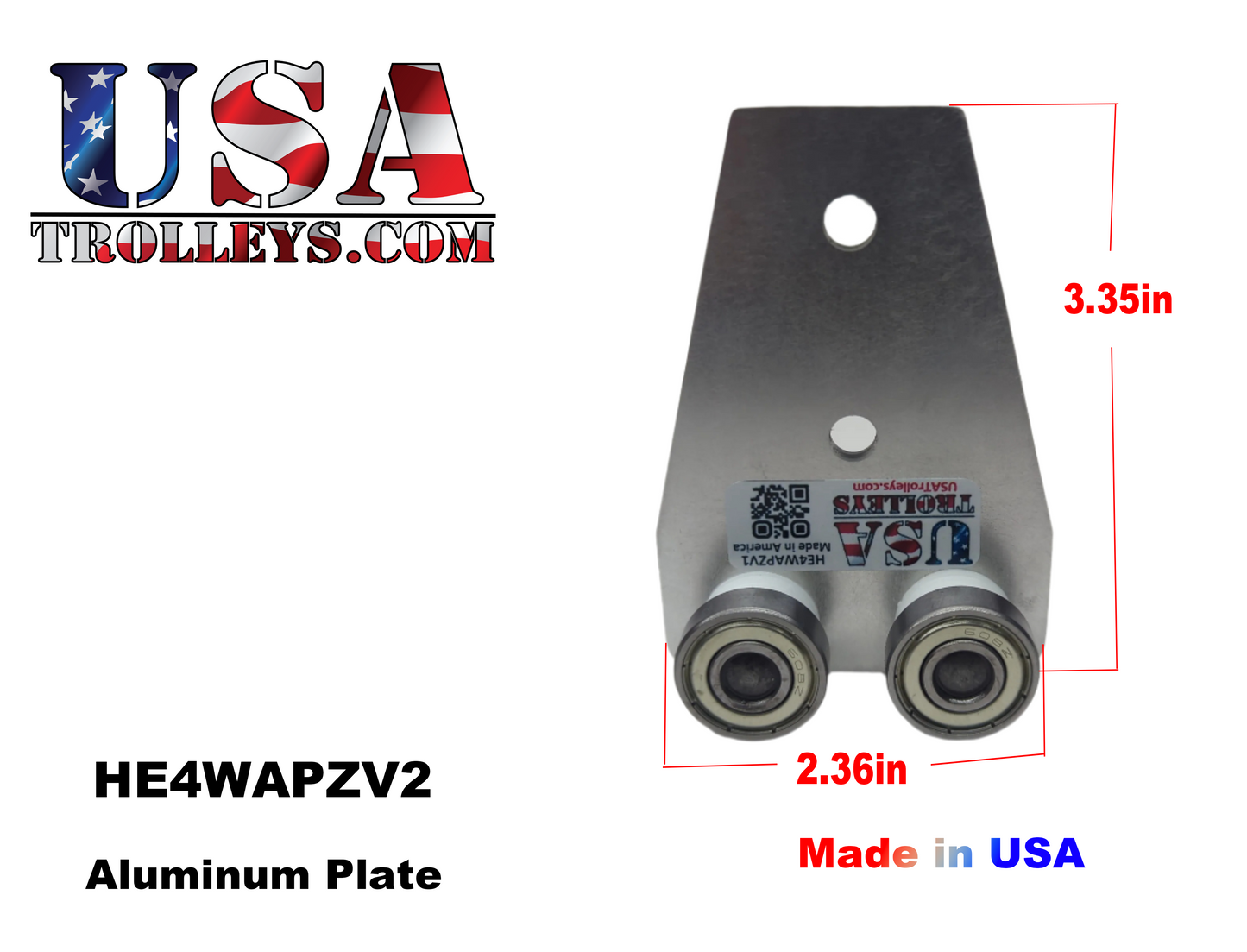

1 3/8"(35.4mm) wide, stabilizes the trolley in the strut channel more than other trolleys

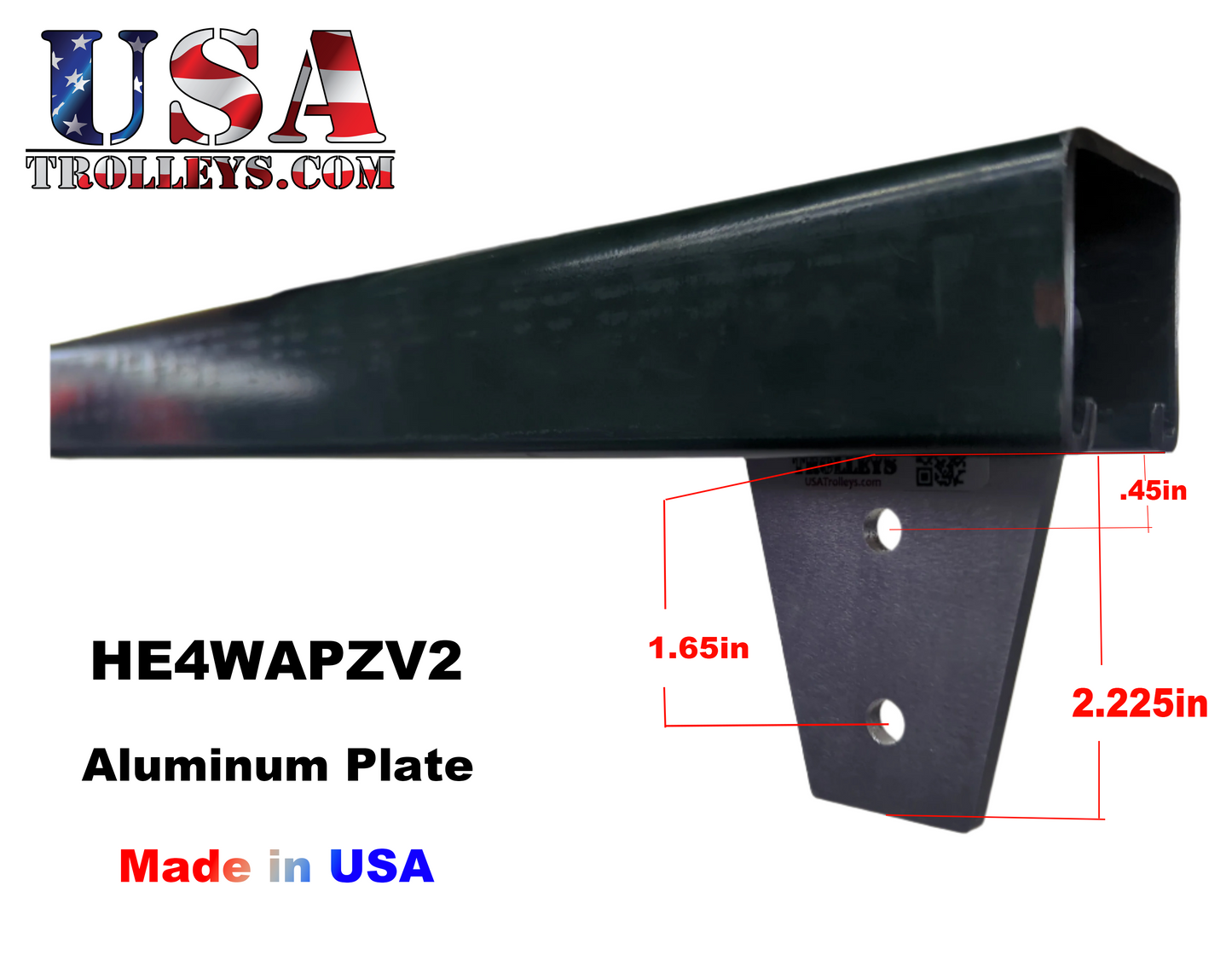

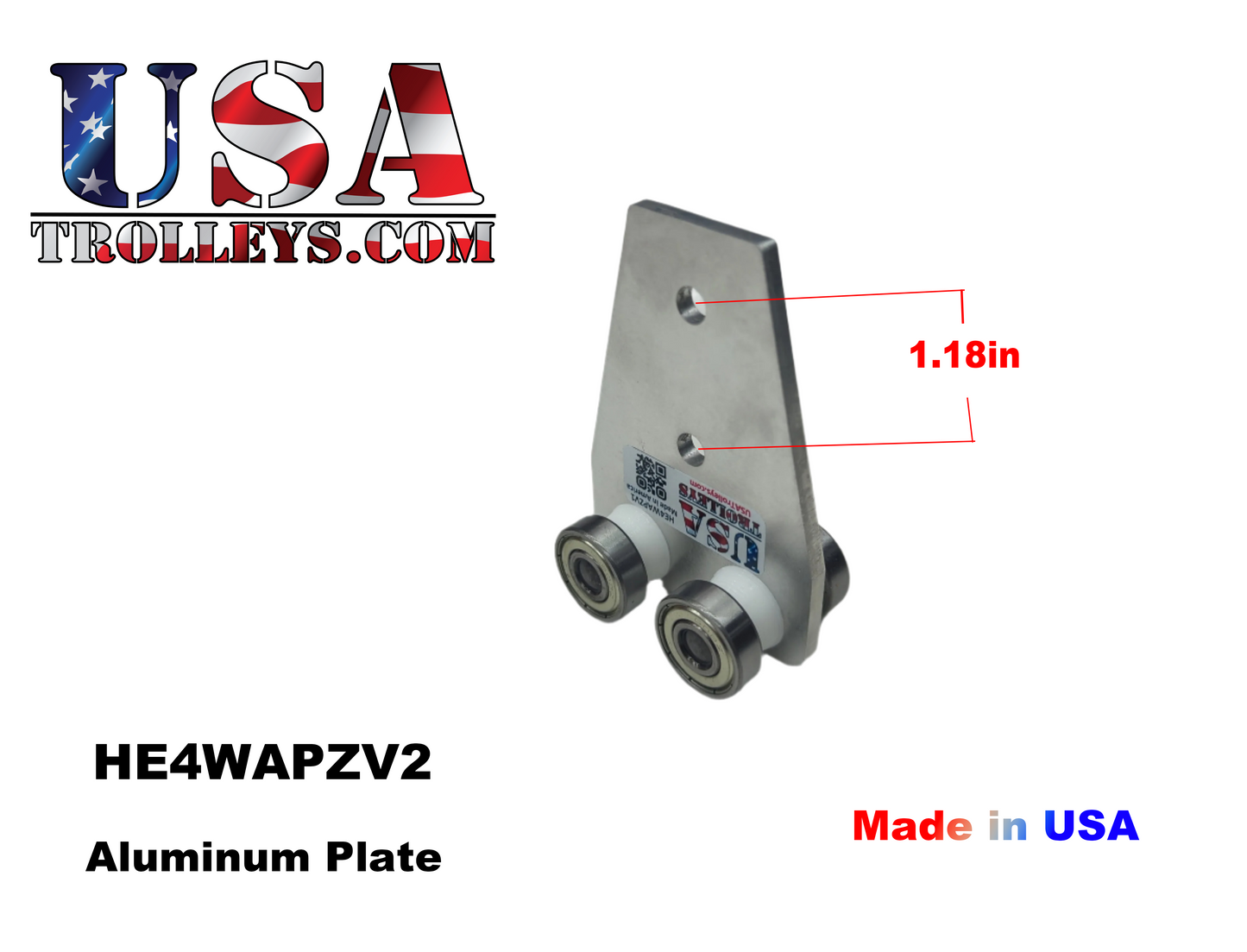

Dual .275in (7mm) Mounting Holes
8GA or .16in (4mm) Thick Aluminum Plate
7/8” (22mm) Wheel/Roller Diameter
Solid Hardened Axles
High Precision Greased Steel Shield Bearings
Trolleys can be ganged together to achieve a greater load capacity
Blemished units may have mill / cut marks on plate and does not effect functionality.
