USA Trolleys

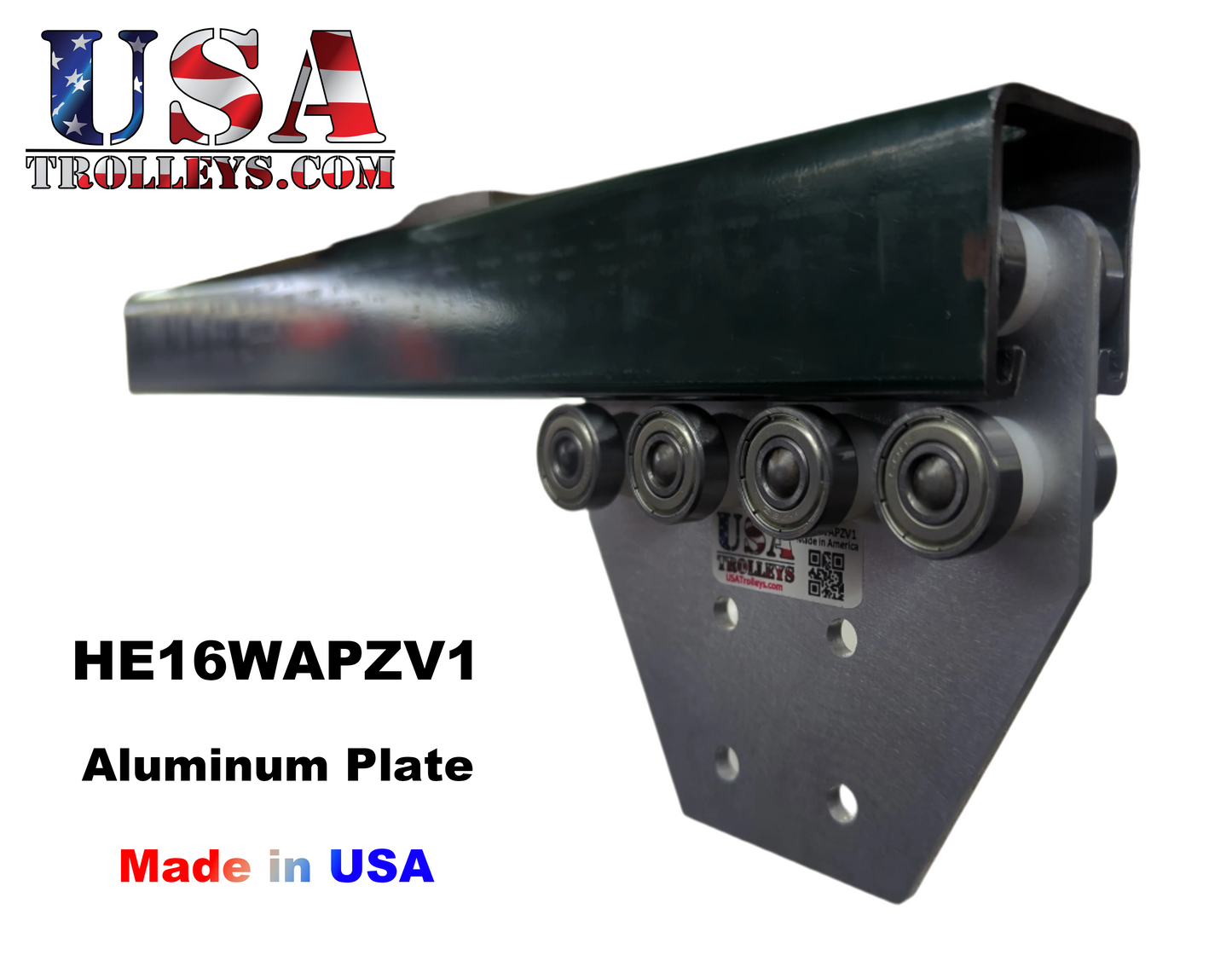

1-5/8" 16 Wheel Heavy Duty Metal Frame Strut Channel Trolley
1-5/8" 16 Wheel Heavy Duty Metal Frame Strut Channel Trolley
Regular price
$41.99 USD
Regular price
$47.99 USD
Sale price
$41.99 USD
Unit price
/
per
In stock
Couldn't load pickup availability
Our trolleys are engineered to accommodate a wide variety of tools, doors, curtains, backdrops, fixtures, moveable dividers, welding curtains, pneumatic tools, die handling, material transfer, lubrication systems, moveable wire / air hose handling, and anything else you need to slide along 1-5/8" Strut Channel.
Compatible with Unistrut, Superstrut, P1000, P1001, P5000, P5001, P5500, P5501, and all 1-5/8” or taller metal frame strut channel.
- Tested up to 300LBS, We are unsure of Max rating at this time
- 1 3/8"(35.4mm) wide, stabilizes the trolley in the strut channel more than other trolleys

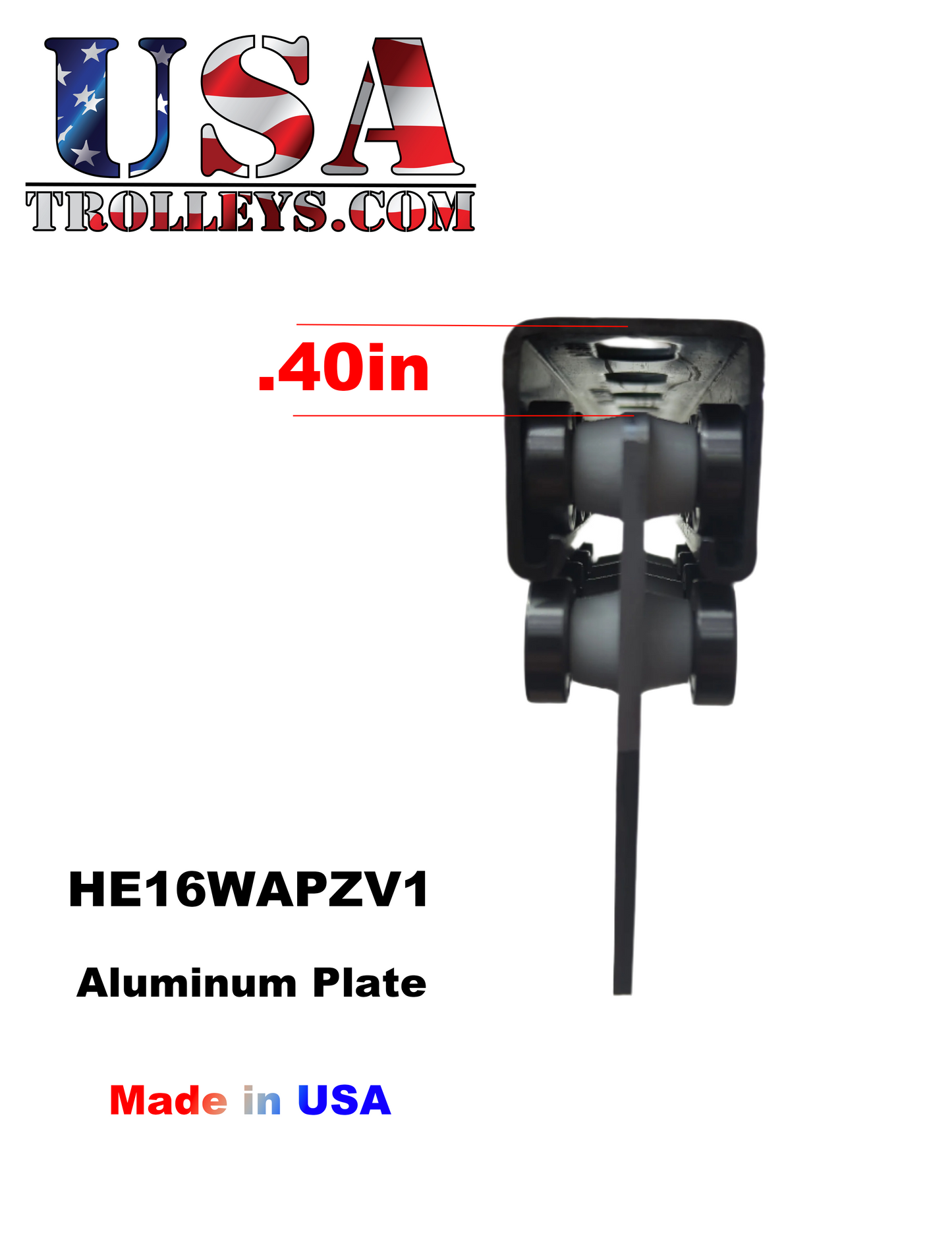

- Outside Wheel/Rollers keep trolley seated on lip of strut channel
- Great for vertical or top down tracking applications

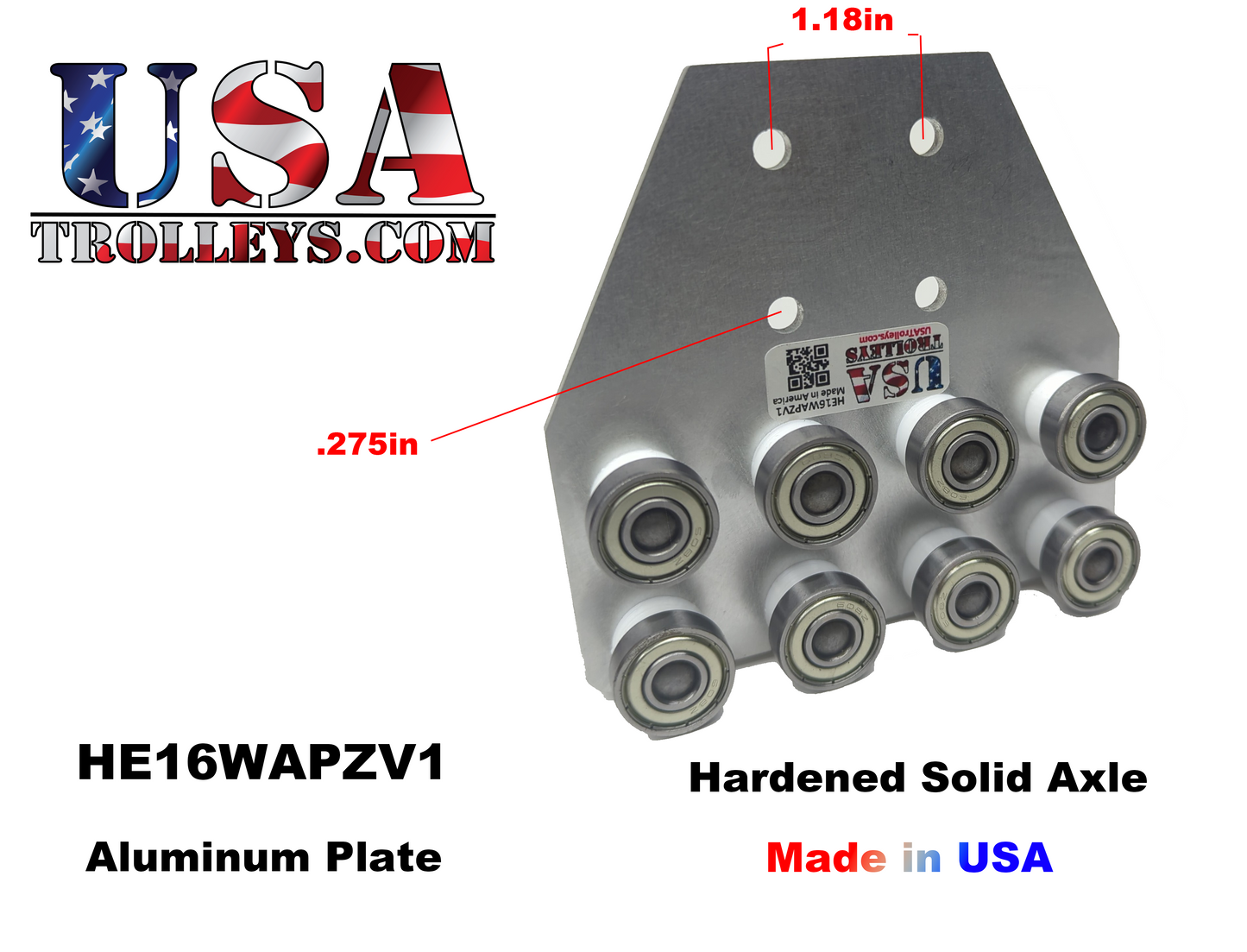

- .275in (7mm) Mounting Holes

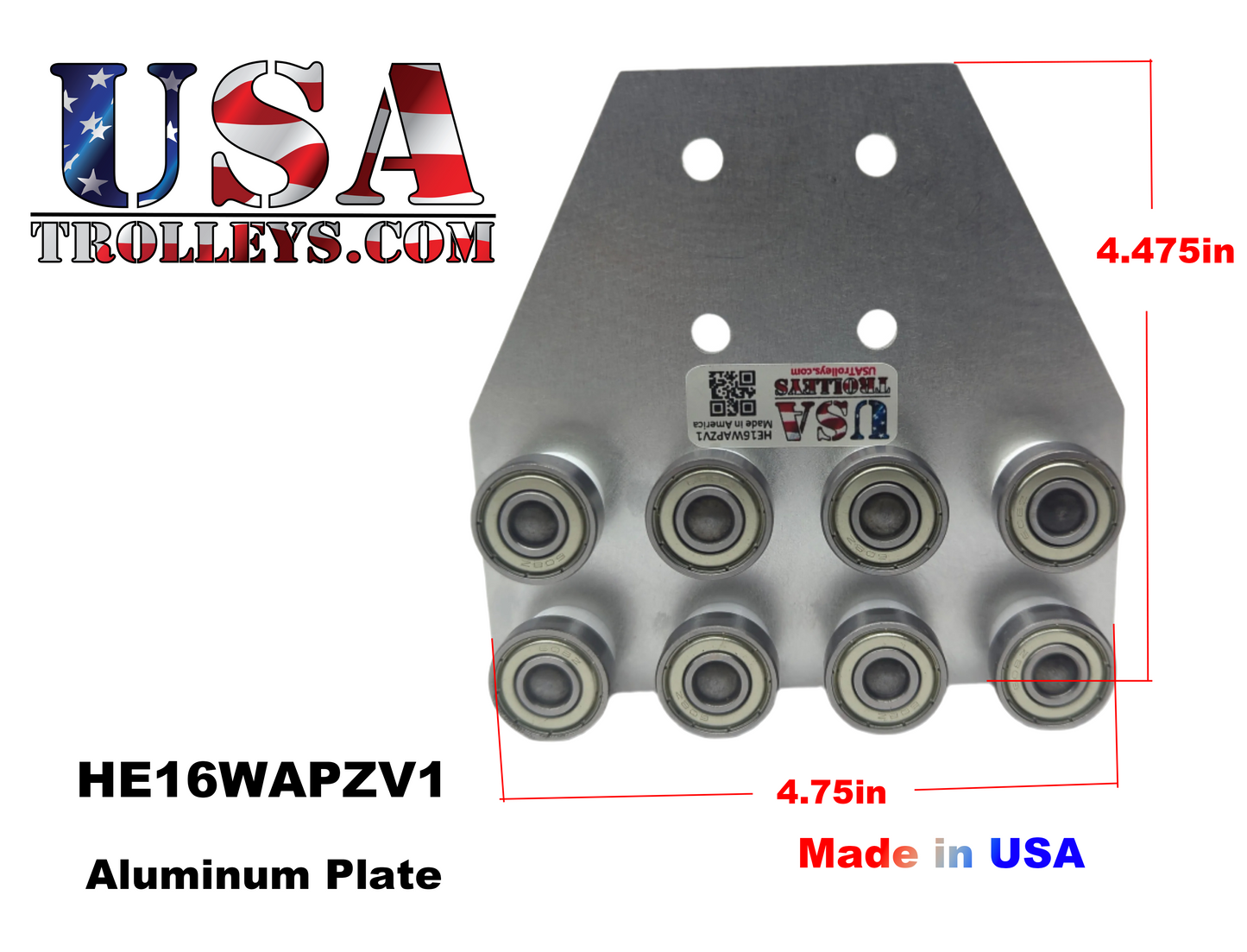

- 8GA or .16in (4mm) Thick Aluminum Plate
- 7/8” (22mm) Wheel/Roller Diameter
- Solid Hardened Axles
- High Precision Greased Steel Shield Bearings
- Trolleys can be ganged together to achieve a greater load capacity
Model: HE16WAPZV1
Trolleys are hand made in McHenry, Illinois USA
