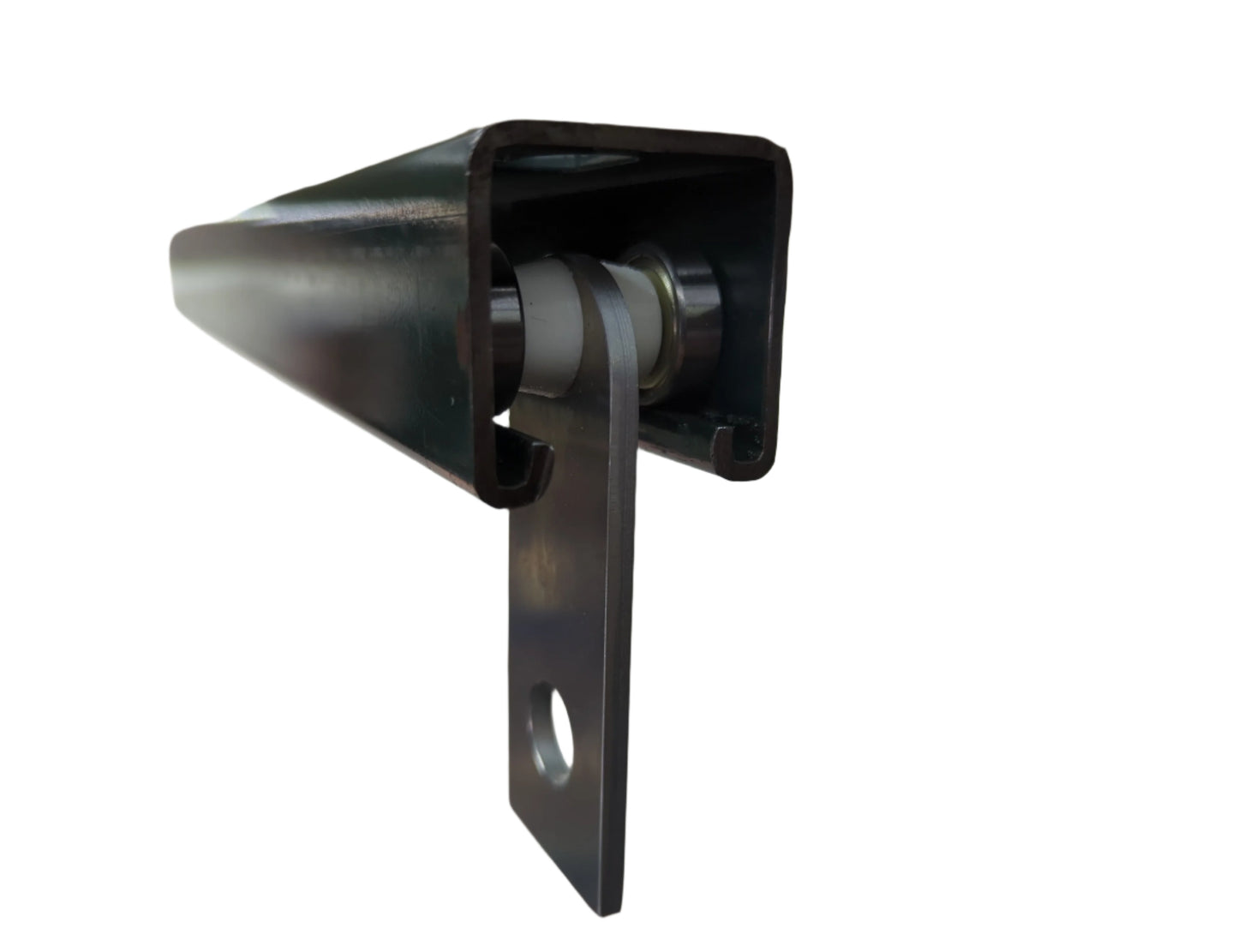

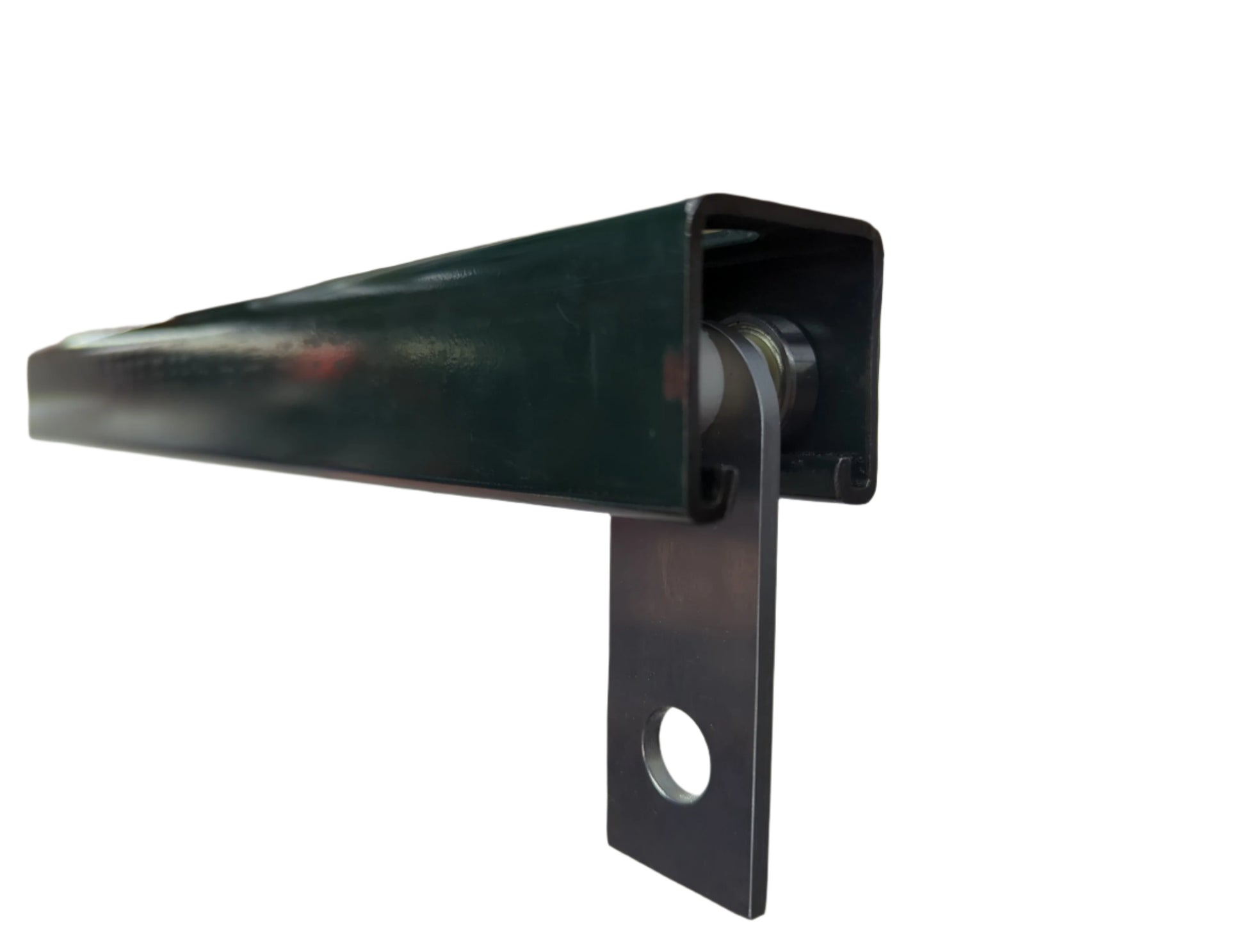

1-5/8" 2 Wheel Aluminum Strut Channel Trolley

1-5/8" 2 Wheel Aluminum Strut Channel Trolley

Regular price $8.99 USD
Regular price $9.99 USD Sale price $8.99 USD
Sale Sold out

In stock

Our trolleys are engineered to accommodate a wide variety of tools, doors, curtains, backdrops, fixtures, moveable dividers, welding curtains, pneumatic tools, die handling, material transfer, lubrication systems, moveable wire / air hose handling, and anything else you need to slide along 1-5/8" Strut Channel.

Compatible with Unistrut, Superstrut, P1000, P1001, P5000, P5001, P5500, P5501, and all 1-5/8” or taller metal frame strut channel.

Rated to 100LBS but have been tested up to 200LBS

1 3/8"(35.4mm) wide, stabilizes the trolley in the strut channel more than other trolleys

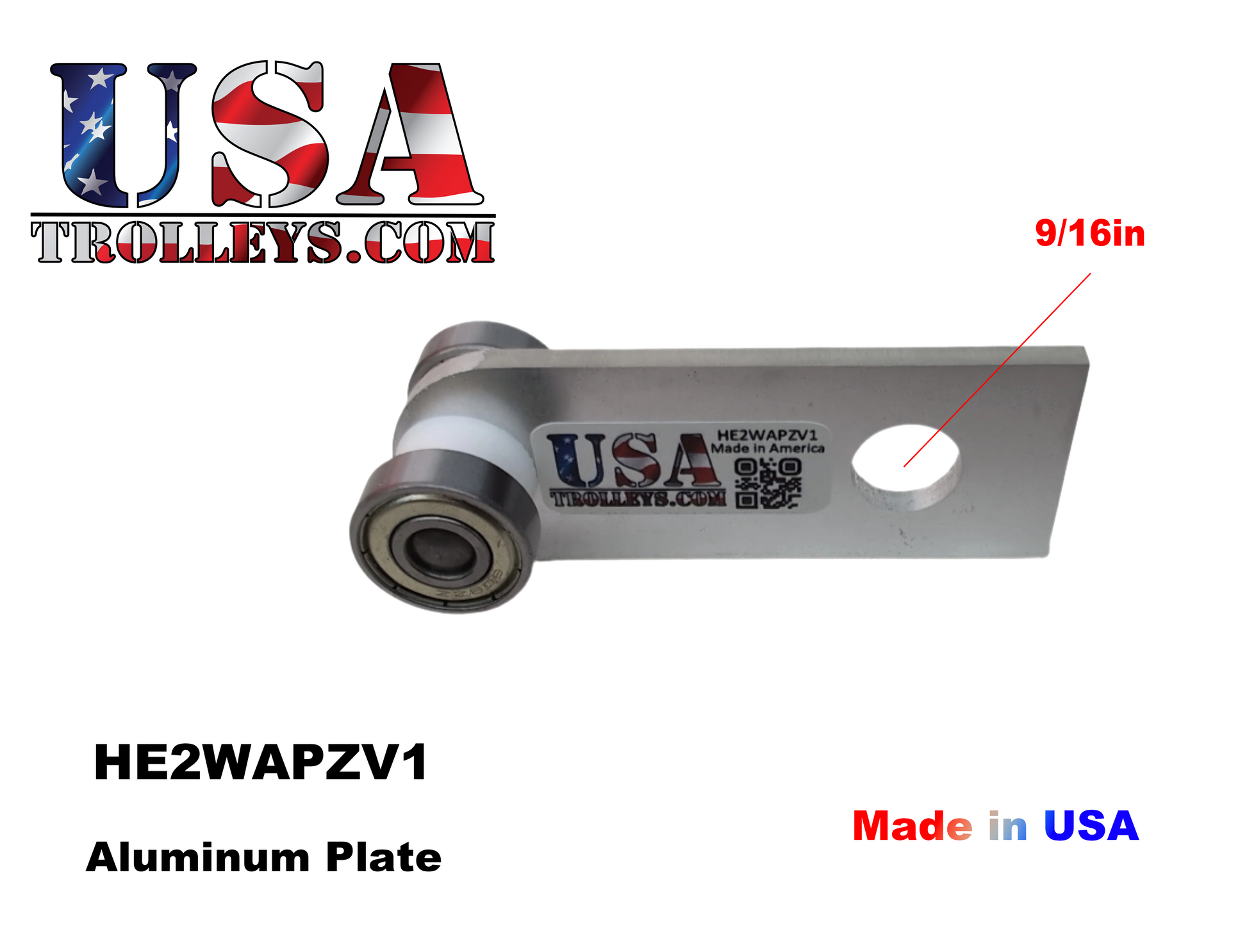

9/16 Mounting Hole

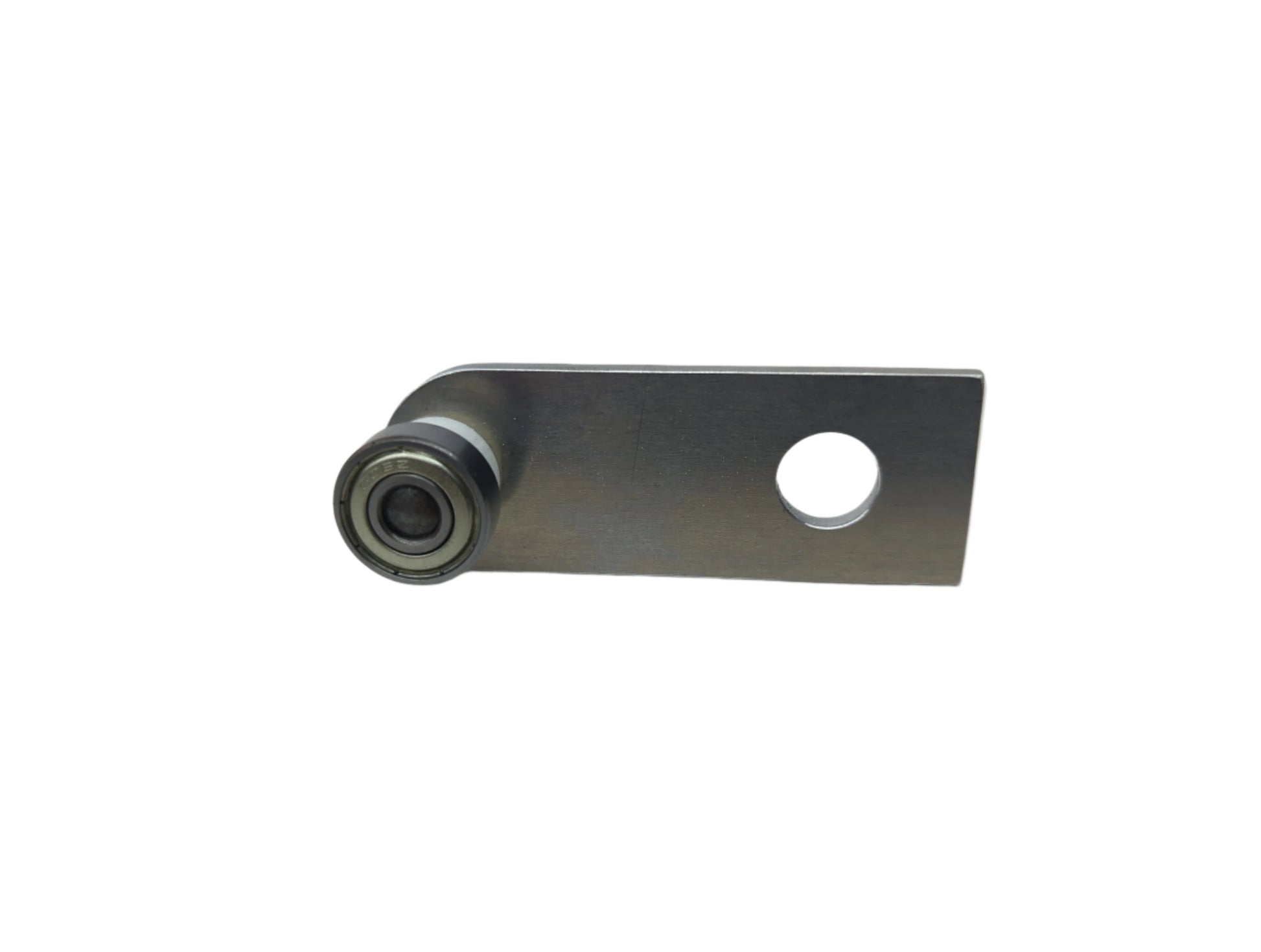

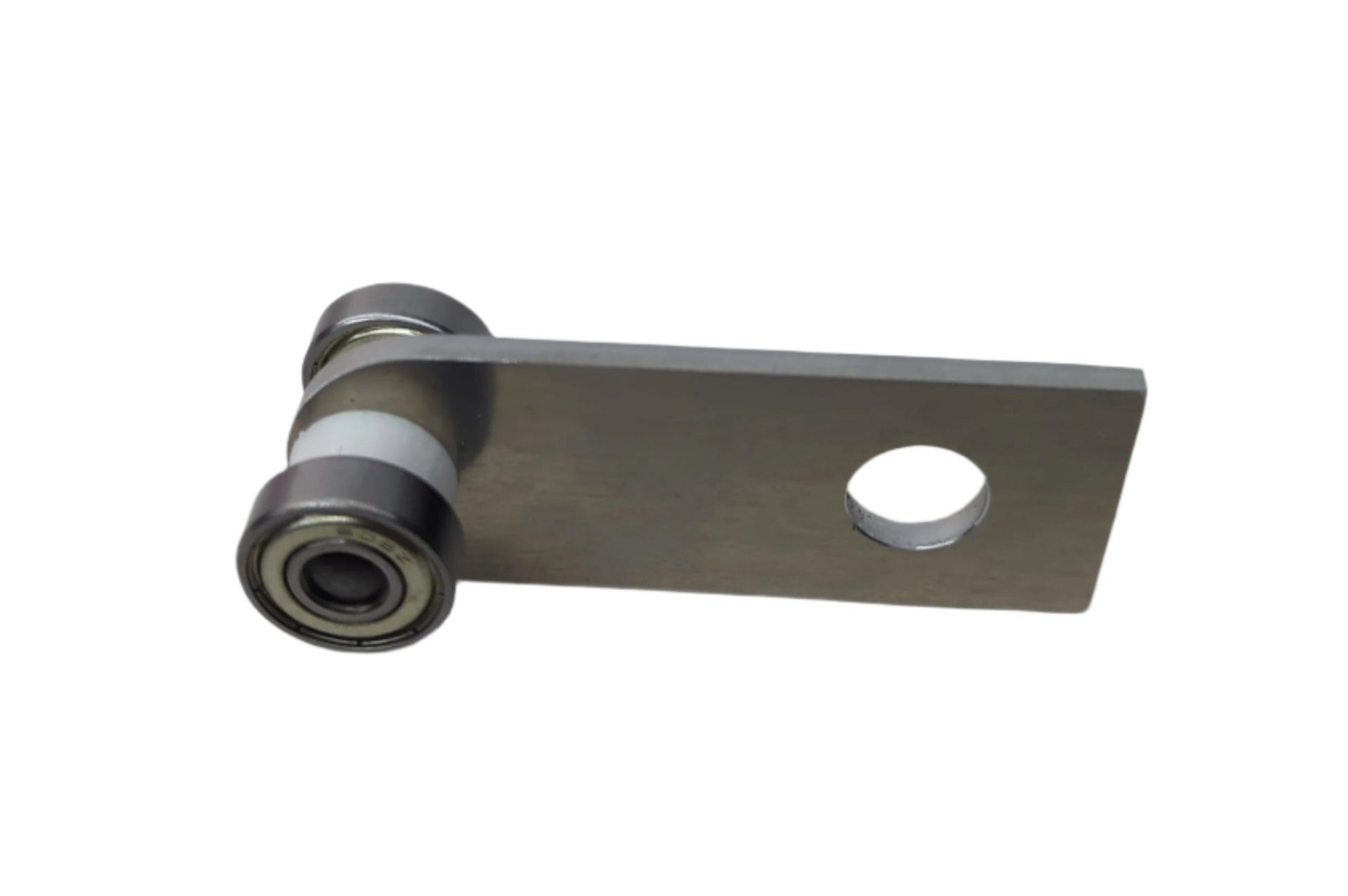

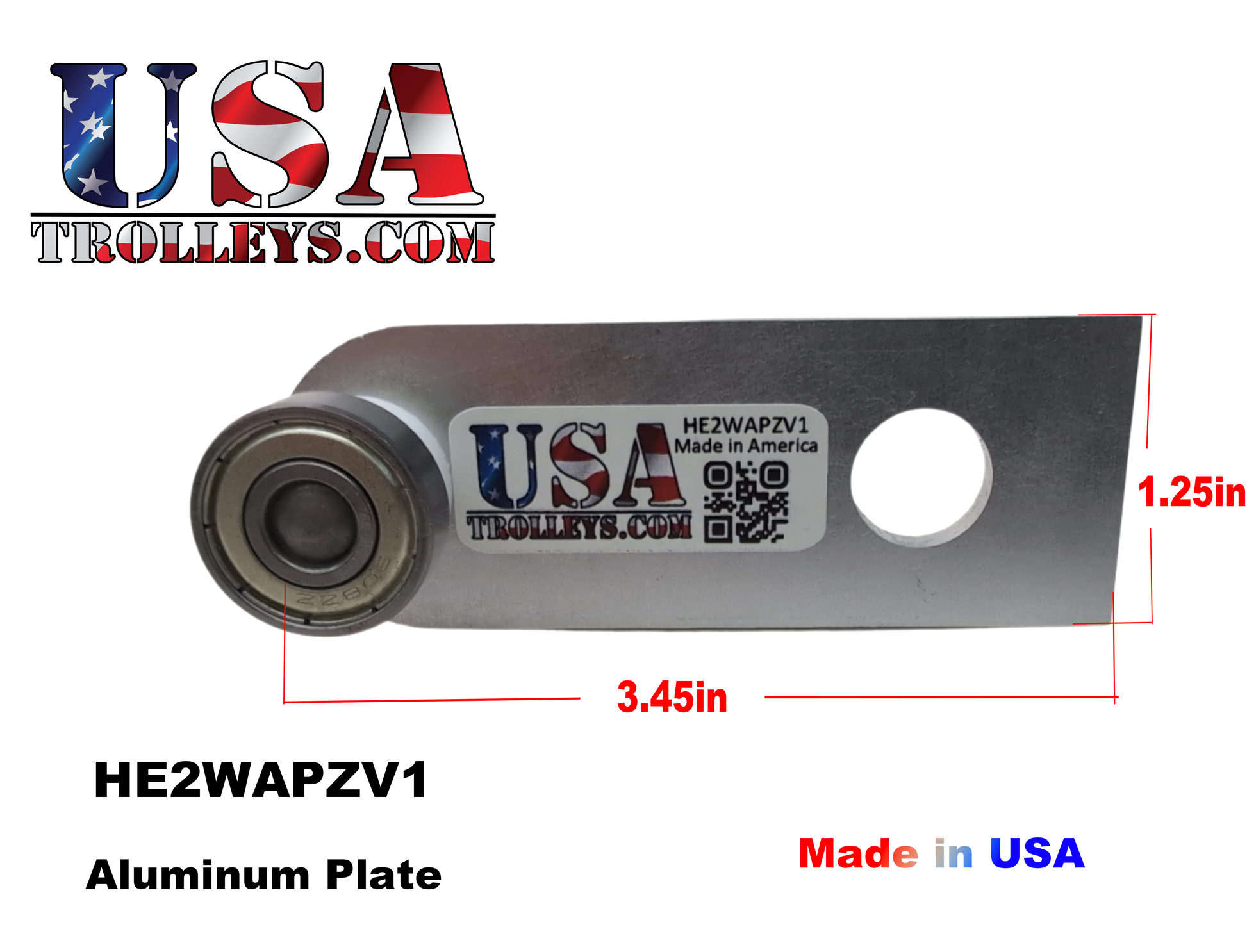

8GA or .16in (4mm) Thick Aluminum Plate

7/8” (22mm) Wheel/Roller Diameter

Solid Hardened Axle

High Precision Greased Steel Shield Bearings

Trolleys can be ganged together to achieve a greater load capacity

Blemished units may have mill / cut marks on plate and does not effect functionality.

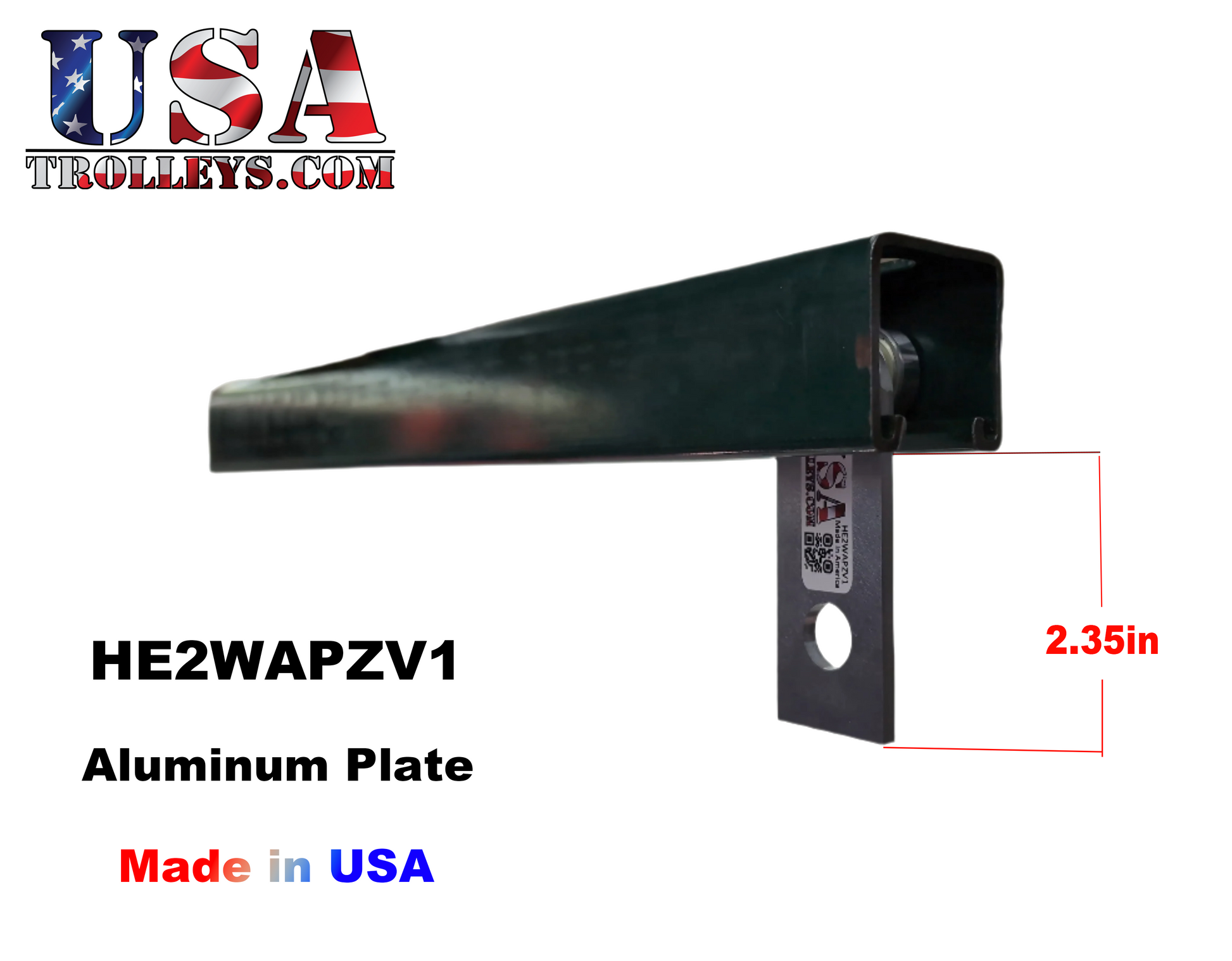

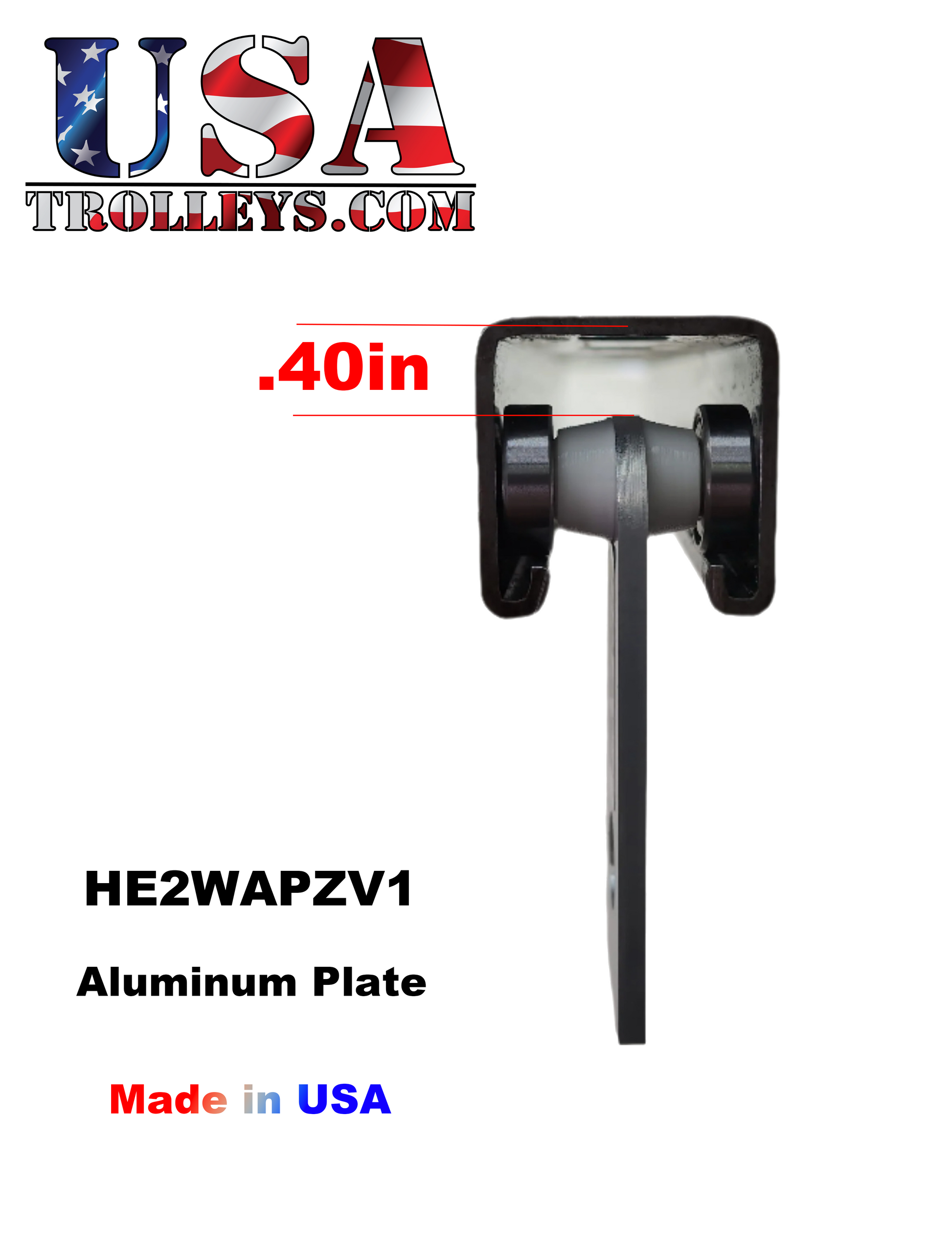

 Model: HE2WAPZV1

Trolleys are hand made in McHenry, Illinois USA
